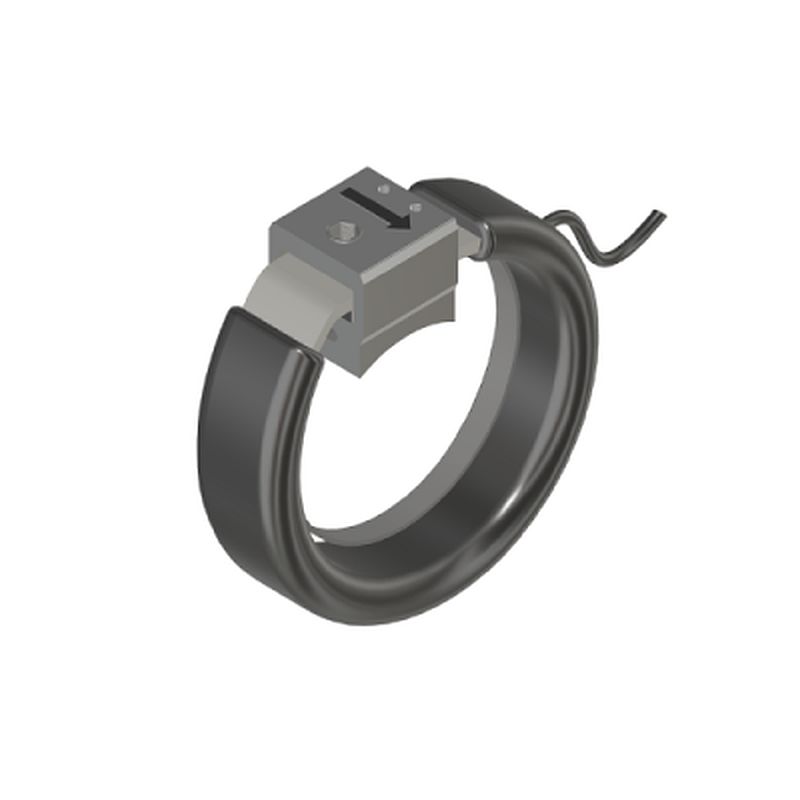

The ExxxT-xx current sensor from Greenwood Power is dedicated for installation on the cables of a gas or insulated switchgear in the primary or secondary energy distribution. The design is splitable, which makes it easy to put the sensor on an existing cable. Earthing could be done at the current sensor, or through the shielding of the cable or through the S2 connection inside the IED.

At a glance

• Current sensor for retrofit installation in split-core design
• Passive technology – no active parts are inside, nor a power supply is needed
• Splitable form factor for retrofit installations
• Easy installation on bushings and cables
• Correction factors for amplitude and phase inaccuracy improve the sensor class
• Available as ECO-variant: Initial accuracy class 1, using correction factors accuracy class oimprovement possible
• IP67 protection if needed
